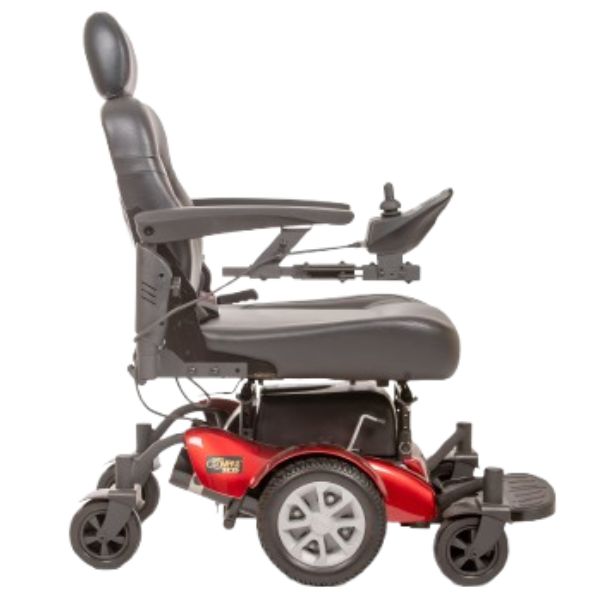

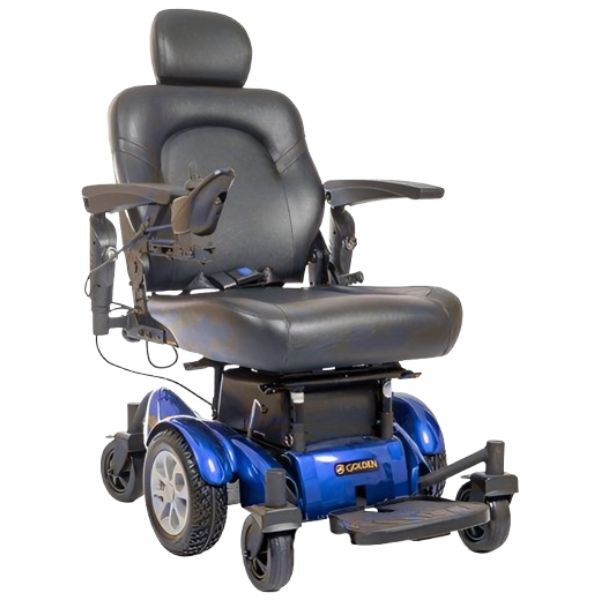

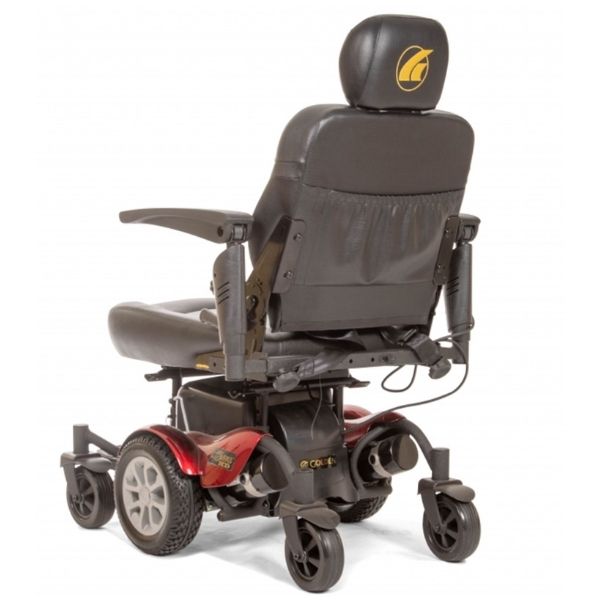

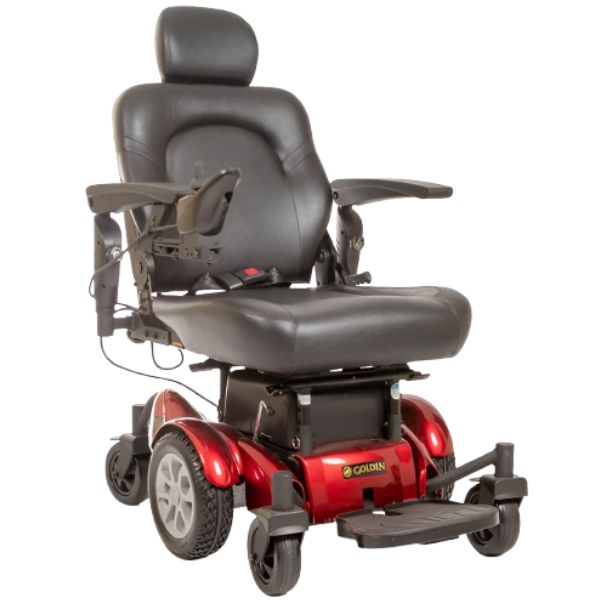

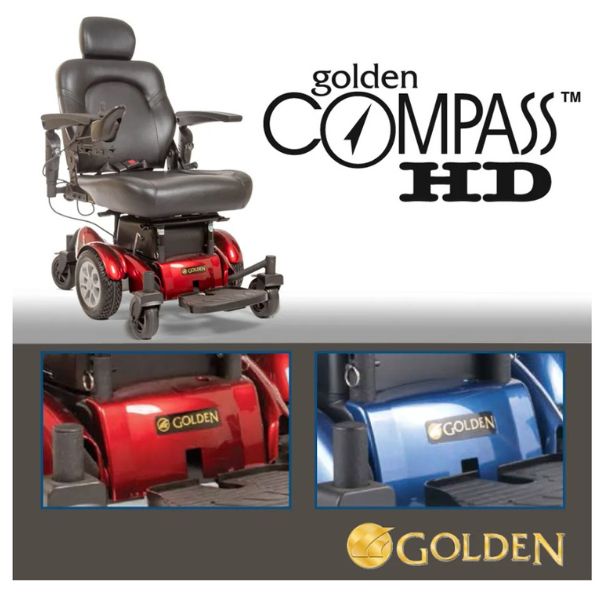

Compass HD Bariatric Power Chair GP620 by Golden Technologies

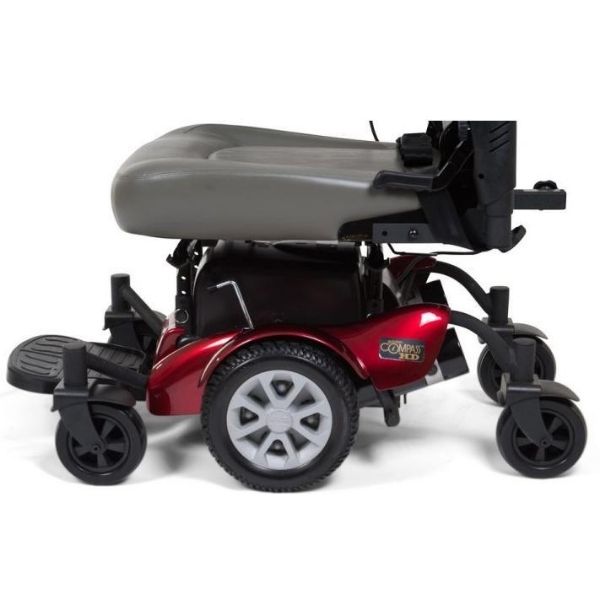

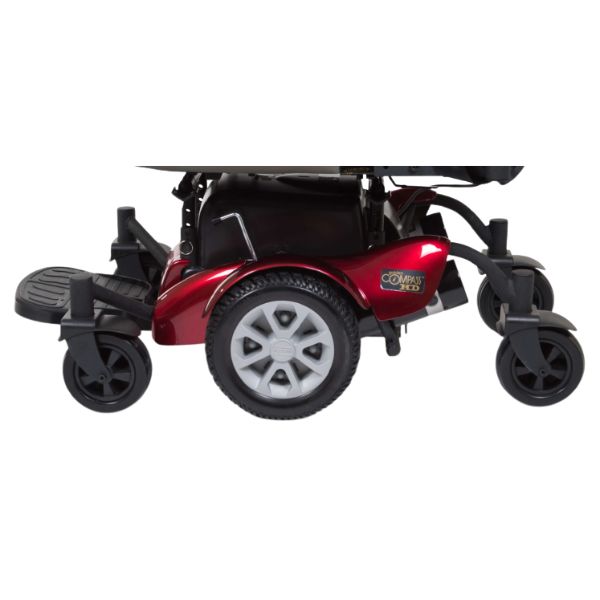

The Heavy Duty Golden Technologies Golden Compass HD offers users a stable, mid-wheel drive configuration and an improved chassis for a stable ride over tough terrain. This power chair offers an impressive 450 lbs. weight capacity, along with a modest 20" turning radius. This heavy duty power wheelchair comes standard comfortable and captain's seat along with their exclusive folding flat seat hinge design for easy transport.
Like the standard Golden Compass, this unit features both front and rear adjustable seat posts and padded flip-up armrests. With the easy-to-use sliding seat bracket and a fully adjustable footplate, you can truly experience how this Golden power chair can transport you to places you never thought were possible!
See the COMPASS HD in Action!
If you want to experience the excitement and performance of the Compass HD, watch the ride-along video below. You'll get a firsthand look at its smooth handling, powerful features, and why it's the perfect choice for your needs.

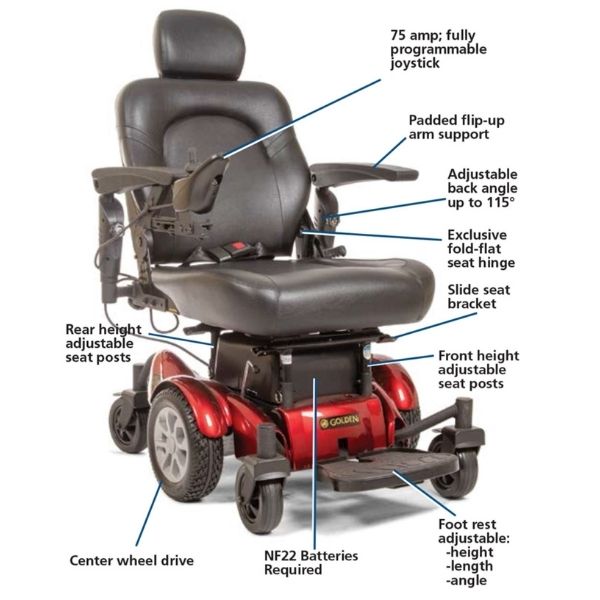

Golden Technologies Compass HD Benefits & Features:

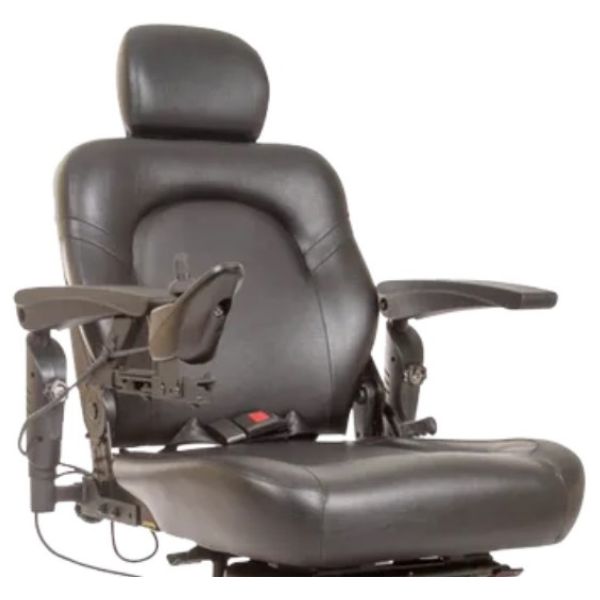

- Standard captain’s seat with our exclusive fold-flat seat hinge design
- Optional seating includes ProFlex Seat and van/pan seat

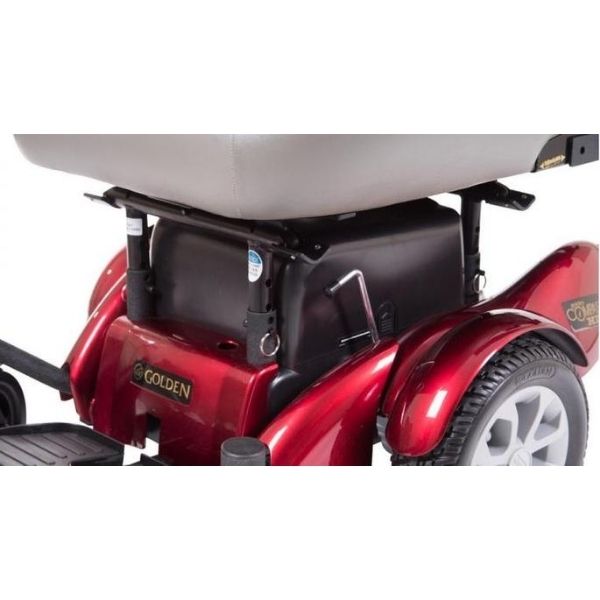

- Exclusive slide seat mechanism for easy seat removal and attachment
- 450 lb. weight capacity

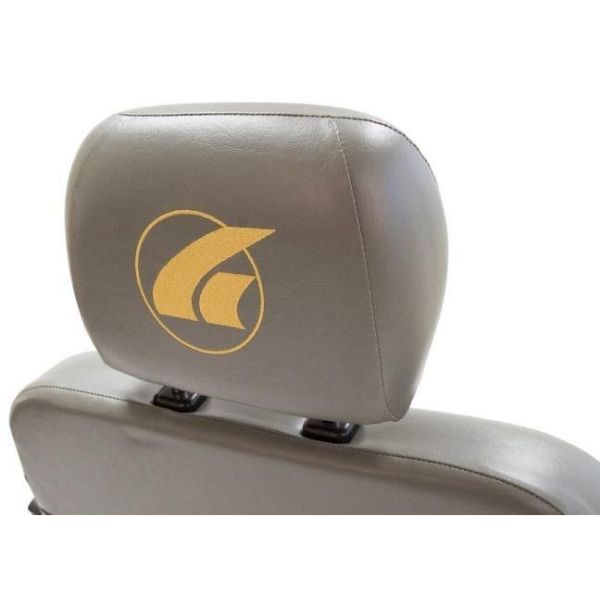

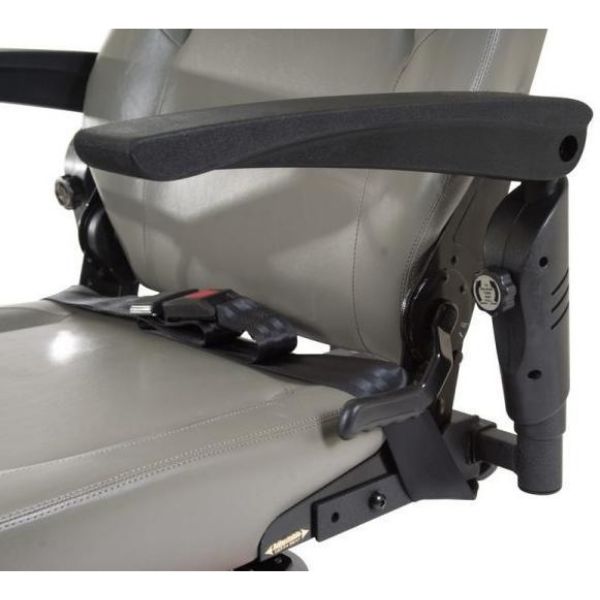

- Adjustable headrests and armrests

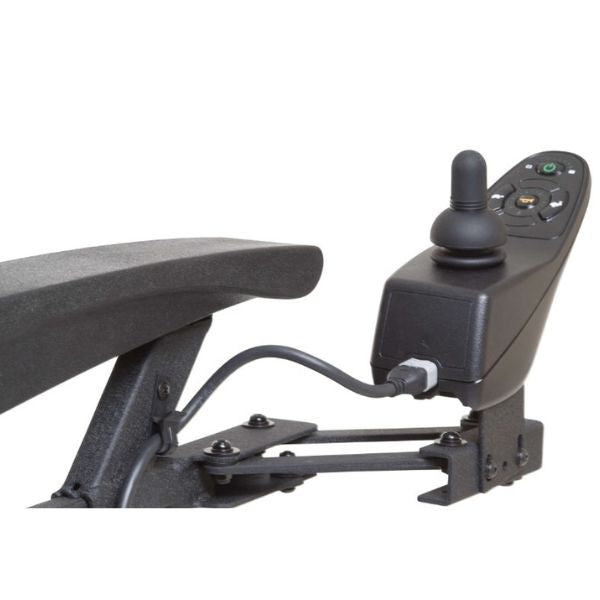

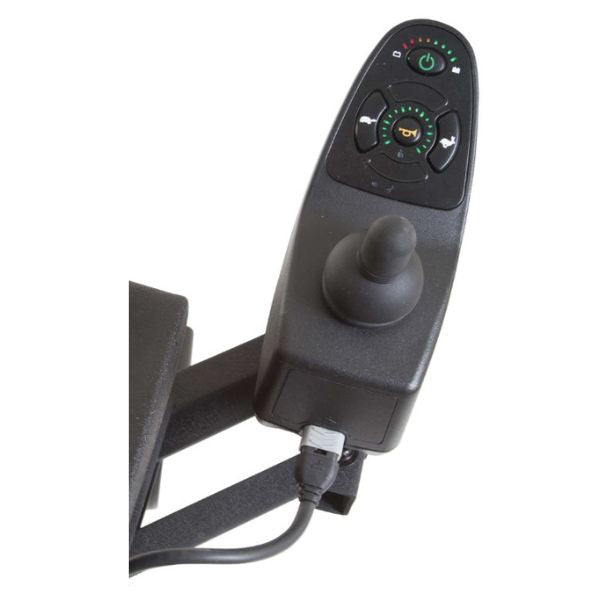

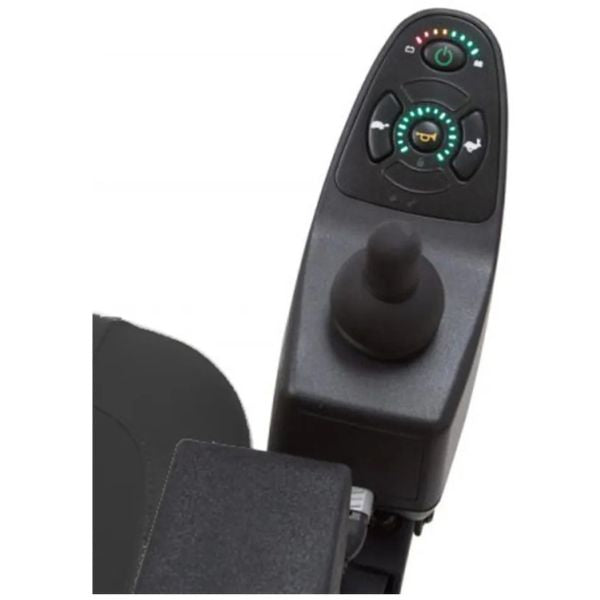

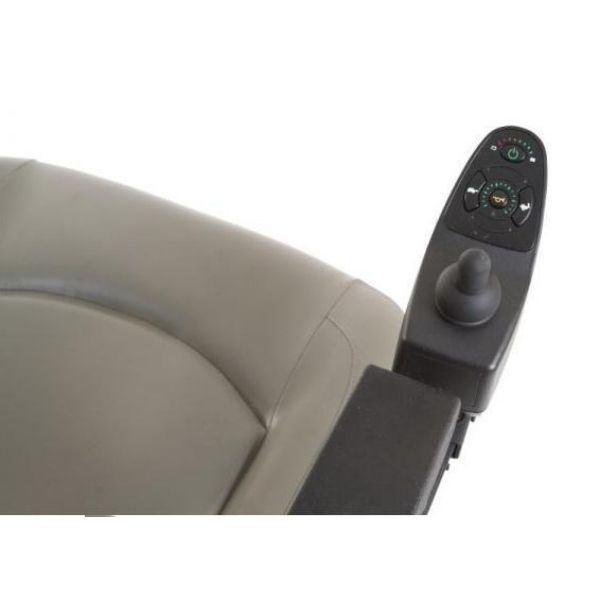

- 75 amp peak Dynamic Shark controller standard
- Off-board charger
- Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
- Uses 22NF batteries
- Model Number: GP620M
| Category | Specification |
|---|---|
| Weight Capacity | Up to 450 LBS |
| Travel Range | Up to 12 Miles |
| Ground Clearance | 3.50" |
| Speed | Up to 4 MPH |
| Incline Rating | 6° |
| Air Line Friendly | No |
| Heaviest Piece | 101 LBS |
| Total Weight | 226 LBS |
| Turning Radius | 20" |
| Brakes | Automatic (Magnetic) |
| Suspension | No |
| Suspension Type | Automatic (Magnetic) |
| Overall Length | 40" |
| Overall Width | 25" |
| Disassembles | Yes |
| Foldable | No |
| Seat to ground height Range | 21.25” - 24.25 |
| Seat Type | Captain’s Seat |
| Hitch Receiver | No |
| Height Adjustable Seat | Yes |
| Removable Seat | Yes |
| Seat Width | 20" - 24" |
| Seat Depth | 20" |
| Seat Back Height | 21” |
| Seat Recline | No |
| Seat Slider | Yes |
| Seat Rotation | Yes |
| Seat Belt | No |
| Seat Material | Black Vinyl |
| Headrest Height | 7.5" - 11.5" |
| Armrests Included | Yes |
| Armrest Width Adjust | Yes |
| Height Adjust Armrest | Yes |
| Flip Up Armrests | Yes |
| Removable Armrests | Yes |
| Seat Post Type | Clover |
| Folding Backrest | Yes |
| Elevating Seat | No |
| Tire Type | Solid |
| Front Tire Size | 6" casters |
| Middle Tire Size | 10” |
| Rear Tire Size | 6" casters |
| Joystick Options | Several |
| Horn | Yes |
| Turn Signals | No |
| Battery Voltage | 12 Volts |
| Amp Hours | 55 AH |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Battery Weight | 37 LBS each |
| Number of Batteries | 2 |
| SLA Battery Upgrade | No |
| Lithium Battery Upgrade | No |
| Battery Charger Specs | 24 Volt 3.5 Amp |
| Battery Charger Connection | XLR (3-pin) |
| Charging Port(s) | On Joystick & Base |
| Watt Hours | 1320 |
| USB Port | No |
| Drive Type | Mid Wheel Drive |
| Drive Modes | FWD & REV (2 Speed Mode) |
| Storage Compartments | No |
| Controller Type | Dynamic 75 Amp |
| Transit (Tie-Down) Loops | No |
| Adjustable Angle Footplates | Yes |
| Shipping Dimensions | L - 34" ; W - 26" ; H - 18" |
Warranty Information for the Compass HD
Golden Technologies Limited 5-Year Warranty
If you have a problem with your scooter or power wheelchair, simply call one of our expert customer service representatives, and they will arrange for an authorized technician to diagnose/repair your scooter or power wheelchair. Electricwheelchairsusa.com will have the parts shipped directly to the technician, or your residence – free of charge. Every effort will be made to return your mobility equipment to working condition in the shortest time possible.
The following parts will be repaired or replaced at our discretion, free of charge, for the following allowable time periods from the date of purchase.
5-Years:
Frame
1 Year:
Drive Train
Motor/Electronics
All of the previous parts are covered for defects in material and/or workmanship. Any abuse or intentional misuse of the scooter will void the warranty.
Hear From Our Customers...
Swipe Right for More Videos.
Need Help Choosing The Best Product For You?
Schedule a call with one our mobility experts and they will help you pick the right product for your needs.
Book A Call
Use collapsible tabs for more detailed information that will help customers make a purchasing decision.
Ex: Shipping and return policies, size guides, and other common questions.
Use collapsible tabs for more detailed information that will help customers make a purchasing decision.
Ex: Shipping and return policies, size guides, and other common questions.
Use collapsible tabs for more detailed information that will help customers make a purchasing decision.
Ex: Shipping and return policies, size guides, and other common questions.
Use collapsible tabs for more detailed information that will help customers make a purchasing decision.
Ex: Shipping and return policies, size guides, and other common questions.
Questions & Answers
Have a Question?
-
Where are the tie down areas (hooks) when transporting on an access a ride vehicle ? Most chairs have them.
There are no hooks on this unit, but for transporting, you can secure the unit by going over the caster beams by the caster wheels.
-Stacy -
Can you get in left hand control
Hi! Thank you for the question. Yes, it can be installed in the left armrests.
